The Rototilt® R6 is our third-largest tiltrotator, adapted for excavators weighing between 15-24 tonnes. It is a durable tiltrotator which, just like our other models, is designed to cope with harsh conditions over a prolonged period of use, and can handle breakout torques of up to 255 kNm. Our latest model has a number of benefits for you as a machine operator or machine contractor. These include a worm gear for smoother running and less friction, as well as a rotation sensor in the end section that provides more precise positioning with RPS. In addition, the R6 has a high-pressure seal and smart grease nipples in combination with a stable design with lower radial bearings in bronze.
You also gain access to all of Rototilt’s other smart functions and properties, such as an oil-filled rotor housing cast in a single piece for maximum lubrication, minimal wear and an extremely long service life. And even more benefits in combination with the QuickChange™ quick coupler system and the SecureLock™ safety solution.
| Machine weight, min-max | 15000 - 24000 kg 15000 - 24000 kg |
|---|---|
| Weight (from) | 570 kg 570 kg |
| Bucket width, max | 1800 mm 1800 mm |
| Breakout force, max | 170 kN 170 kN |
| Breakout torque, max | 255 kNm 255 kNm |
| Tilt angle (2x) | 40 ° 40 ° |
| Rotation speed (1 revolution in) | 7.0 s at 72 l/min 7.0 s at 72 l/min |
| Working pressure | 25 MPa 25 MPa |
| Recommended hydraulic flow, min | 121 l/min 121 l/min |
|---|---|
| Number of lubrication points | 6 6 |
| Rotation torque | 9550 Nm 9550 Nm |
| Tilting torque, single-acting cylinders | 44500 Nm 44500 Nm |
| Tilting torque, double-acting cylinders | 56600 Nm 56600 Nm |

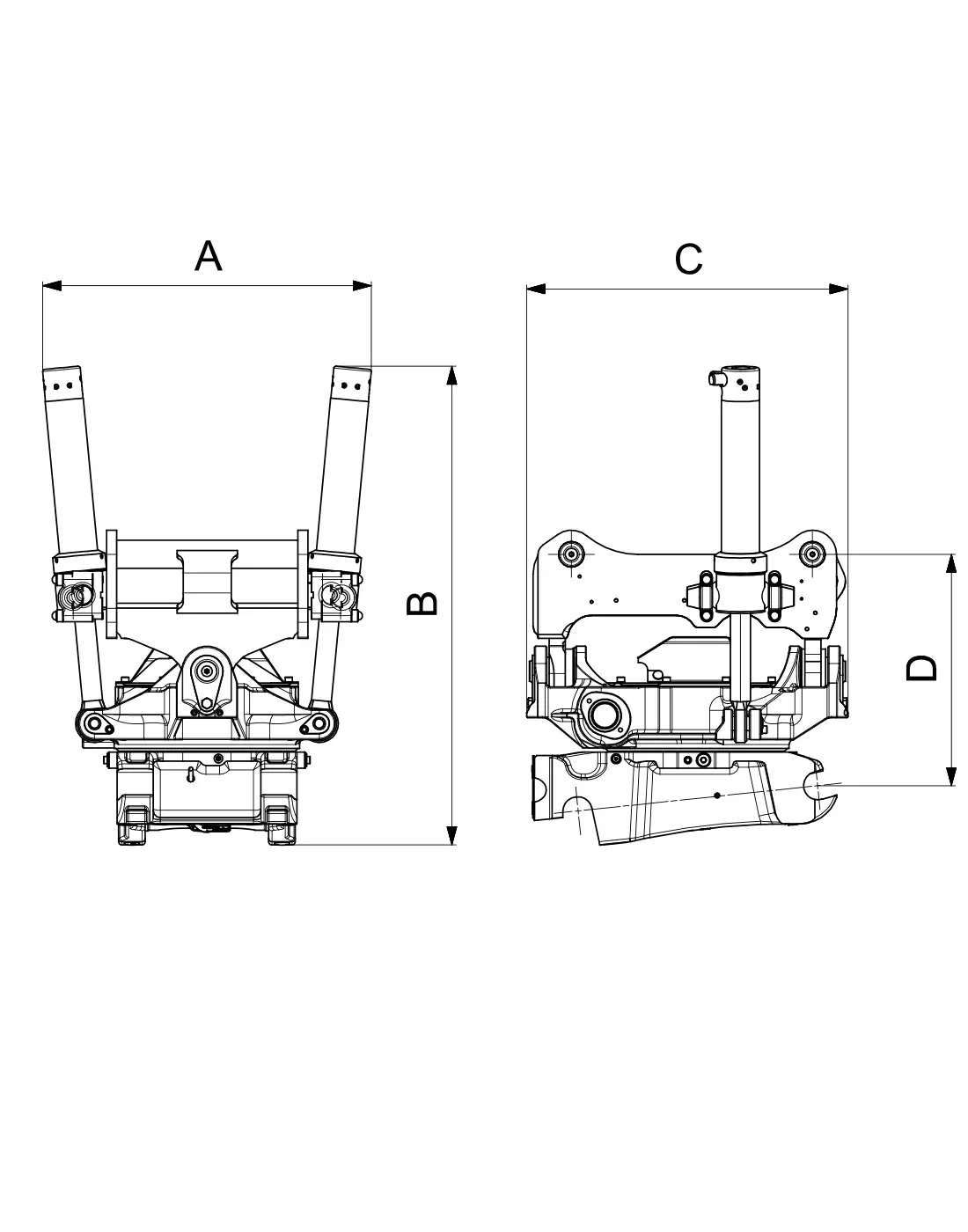

| Dimension A, Width | 819 mm 819 mm |
| Dimension B, Installation height total | 1192 mm 1192 mm |
| Dimension C, Length | 801 mm 801 mm |
| Dimension D, Installation height | 576 mm 576 mm |
